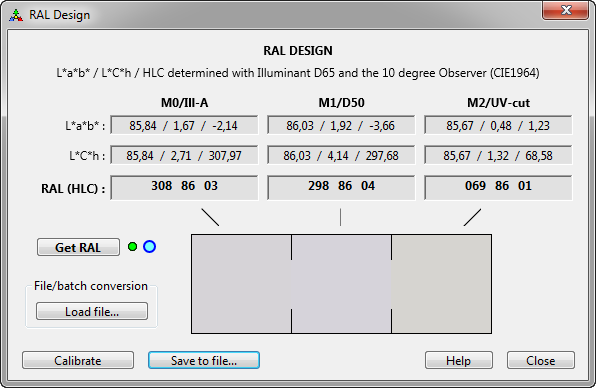

CT&A RAL DESIGN TOOL

The RAL DESIGN tool is a straightforward measurement and conversion tool that presents the measured data as per the  RAL DESIGN Hue- Lightness-Chroma (HLC) coordinates, which are a simple re-order of L*C*h data taken with Illuminant D65 and the 10 degree Standard Observer. Use this tool to obtain HLC coordinates of reflective samples, such as paints, inks, etc. The RAL DESIGN tool can accept inputs from a file or from a supported instrument. A CONNECTED INSTRUMENT IS NOT REQUIRED in order to use this tool. A file may contain one or more spectrums; multiple files can be inputted with drag-and-drop on the "Load file…" button. The input data is immediately converted and saved in a CGATS format text file. Note : If you are using an i1Pro 2 with the i1Pro / i1Pro 2 (XRGA) driver, all measurements will be taken with the three Measurement Conditions, M0 (Ill-A), M1 (D50), and M2 (UV-cut), as defined in ISO 13655-2009 (a description of the M0/M1/M2 measurement conditions can also be found in the FluoCheck tools screenshot page). If you are using an i1Pro, or an i1Pro 2 with the i1Pro / i1Pro 2 (non-XRGA) driver, the program will select the default measurement condition supported by the instrument and data will not be shown for the other measurement conditions.
BabelColor ®

CT&A RAL DESIGN TOOL

The RAL DESIGN tool is a straightforward measurement and conversion tool that presents the measured data as per the  RAL DESIGN Hue-Lightness-Chroma (HLC) coordinates, which are a simple re-order of L*C*h data taken with Illuminant D65 and the 10 degree Standard Observer. Use this tool to obtain HLC coordinates of reflective samples, such as paints, inks, etc. The RAL DESIGN tool can accept inputs from a file or from a supported instrument. A CONNECTED INSTRUMENT IS NOT REQUIRED in order to use this tool. A file may contain one or more spectrums; multiple files can be inputted with drag-and-drop on the "Load file…" button. The input data is immediately converted and saved in a CGATS format text file. Note : If you are using an i1Pro 2 with the i1Pro / i1Pro 2 (XRGA) driver, all measurements will be taken with the three Measurement Conditions, M0 (Ill-A), M1 (D50), and M2 (UV-cut), as defined in ISO 13655-2009 (a description of the M0/M1/M2 measurement conditions can also be found in the FluoCheck tools screenshot page). If you are using an i1Pro, or an i1Pro 2 with the i1Pro / i1Pro 2 (non-XRGA) driver, the program will select the default measurement condition supported by the instrument and data will not be shown for the other measurement conditions.
